Magnetic couplings

DST permanent magnetic couplings are essential for environmentally friendly drive solutions. Our couplings help to prevent e.g. leakages.

In applications with critical, highly toxic or aggressive media, hermetically sealed drives are inevitable. DST permanent magnetic couplings offer a reliable alternative to conventional dynamic seals due to their contactless and leakage-free torque transmission in pumps and agitators. With well over 1,000 magnet configurations, we are able to find the perfect solution for the diverse applications of our customers.

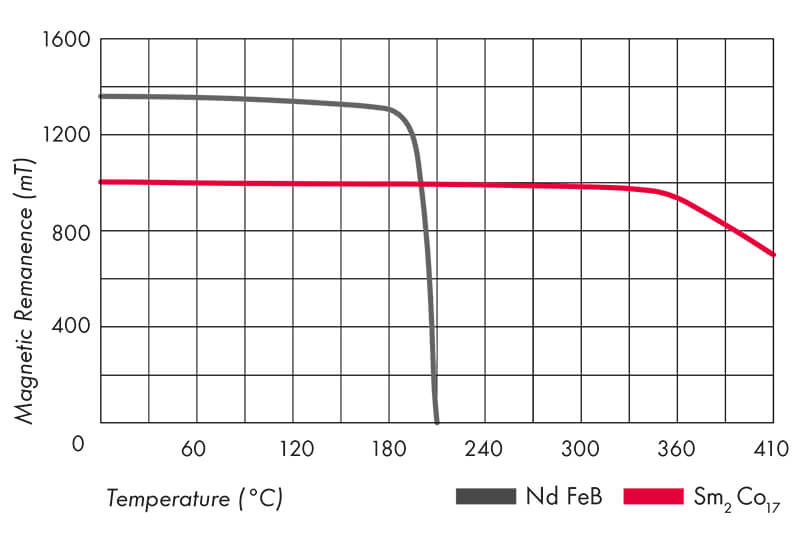

With Sm2Co17 magnets working temperatures up to approx. 350°C are possible. With NdFeB magnets working temperatures up to approx. 150°C are possible. (Higher temperatures for both magnets on request)
Table standard construction ranges »
Type Power Drawing no.
DST 27/1 1 Nm D055M0153
DST 27/2 2 Nm D055M0152
DST 45/4 4 Nm D055M0013
DST 45/4 4 Nm D055M0013
DST 45/6 6 Nm D055M0062
DST 45/8 8 Nm D055M0015
DST 60/7 7 Nm D055M0075
DST 60/10 10 Nm D055M0136
DST 60/14 14 Nm D055M0076
DST 60/22 22 Nm D055M0077
DST 75/10 10 Nm D055M0022
DST 75/20 20 Nm D055M0028
DST 75/30 30 Nm D055M0036
DST 75/40 40 Nm D055M0044
DST 75/60 60 Nm D055M0061
DST 110/22 22 Nm D055M0024
DST 110/50 50 Nm D055M0031
DST 110/80 80 Nm D055M0039
DST 110/100 100 Nm D055M0083
DST 135/85 85 Nm D055M0026
DST 135/100 100 Nm D055M0063
DST 135/135 135 Nm D055M0033
DST 135/180 180 Nm D055M0041
DST 135/220 220 Nm D055M0010
DST 165/140 140 Nm D055M0027
DST 165/200 200 Nm D055M0034
DST 165/275 275 Nm D055M0042
DST 165/365 365 Nm D055M0047
DST 200/550 550 Nm D055M0112
DST 200/700 700 Nm D055M0113
DST 200/850 850 Nm D055M0114
DST 200/1000 1000 Nm D055M0115
DST 200/1200 1200 Nm D055M0203

All DST standard couplings are also available with encapsulated outer rotor and as version for bearing.

Torque

  • Standard: 1 – 1,200 Nm
  • Customer-specific: 0.1 up to 25,000 Nm

Materials

Optimally matched to the various media , the wetted parts of the magnetic coupling are made of different materials:

  • Standard: 1.4571 and 2.4610 (Hastelloy C-4)
  • Stainless steel: 1.4301, 1.4401, 1.4404, 1.4435, 1.4539, 1.4980
  • Hastelloy: 2.4602 (C-22), 2.4819 (C-276)
  • Titanium: 3.7165 (Grade 5), 3.7035 (Grade 2), Beta C/Grade 19, Ti 6-2-4-6
  • Plastic: PTFE, PFA, TFM, PVDF
  • Many other special materials on request.

Applications

  • Process engineering
  • Chemical industry
  • Pharmaceutical industry
  • Industrial furnaces
  • Water management
  • Compressors
  • Dosing technology
  • Hydraulics
  • Petrochemistry
  • Ship industry

Follow us on WeChat for more information

Advantages of the magnetic couplings

  • ATEX certification
  • Well over 1,000 magnet configurations
  • Customer-specific solutions
  • Contactless torque transmission
  • Hermetic sealing between driving and driven side
  • Resistant against aggressive media
  • Maintenance-free
